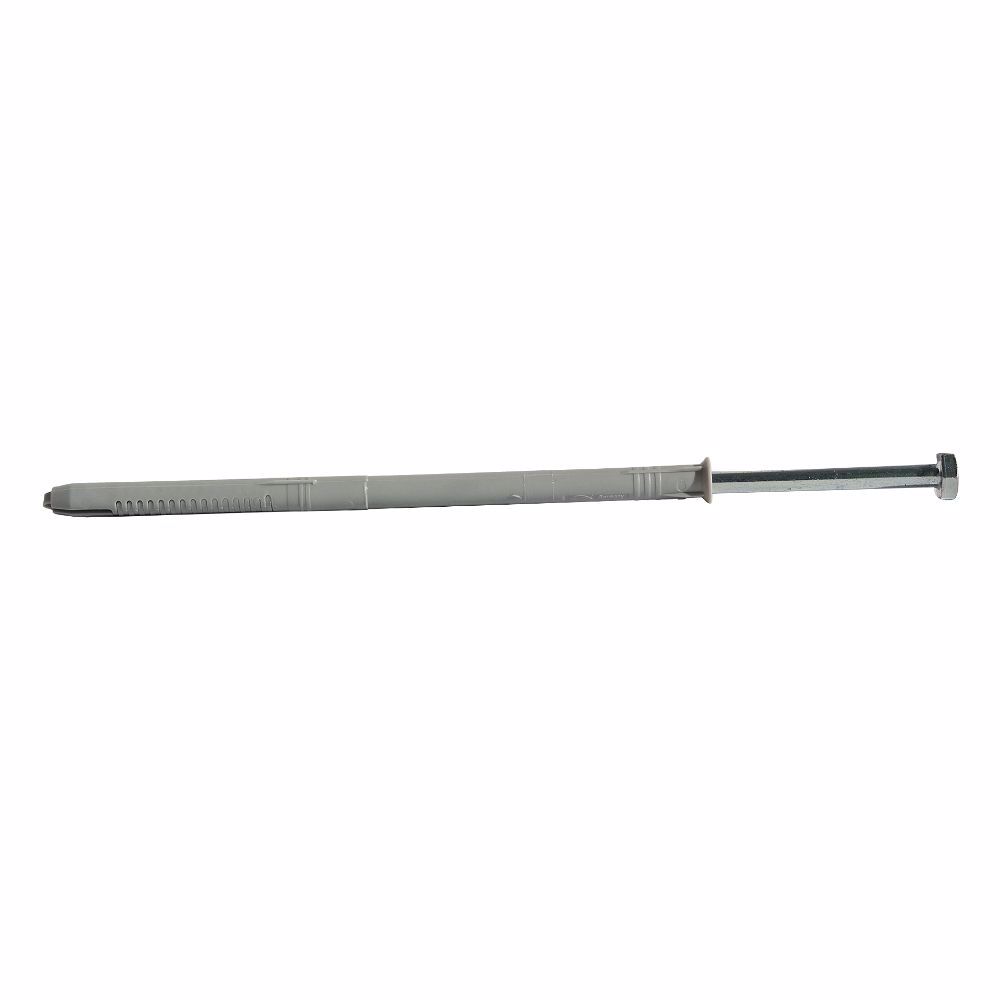

Universal frame fixing FISCHER FUR-SS, Ø 10 x 160

The FISCHER frame fixing FUR consists of a plug sleeve made from high-quality nylon and a hexagonal screw made from zinc-plated steel or stainless steel (Ø 10 x 160). When the screw is screwed in, the asymmetrically arranged lamella teeth expand evenly against the wall of the drill hole in the solid building material. In hollow materials, the teeth expand through the solid part of the block and form an undercut in the cavity. The FUR with hexagonal screw is particularly suitable for the fixing of metal constructions.

Advantages:

• Certifications and declarations applicable to the product: ETA-13/0235, DoP No 0033, DoP No 0756-CPD-0545.

• The slim geometry guarantees a simple installation, even in cases involving thick wooden fixtures and narrow drill holes

Application:

• Façade, ceiling and roof substructures made of wood and metal, Windows, Gates and doors, Squared timbers, Beams, Wall covering

• Building materials: Concrete ≥ C12/15, Vertically perforated brick, Perforated sand-lime brick, Solid sand-lime brick, Solid brick made from lightweight concrete, Solid brick, Natural stone with dense structure, Solid panel made from gypsum, Hollow blocks made from lightweight concrete, Three-layer composite exterior wall panels, Lightweight aggregate concrete
