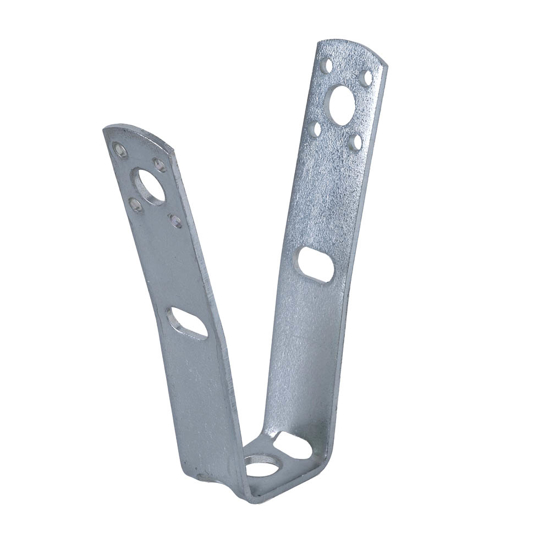

Trapezoidal sheet hanger type TZ, Ø 13

Used for fastening to corrugated sheet metal with screw (stud) M8, steel blind rivets or self-drilling screws. We recommend fastening with bolt (stud) M8 x 120 mm. Available with welded nut M8, M10 or hole Ø 13 mm. For convenience, we also offer special pliers for drilling holes. Through them you will achieve the required accuracy, as well as save money and time.

Characteristics:

• Diameter: Ø 13

• Material: class 5.6 steel – galvanized

• Safe load: 1300 N

Attention:

• Do not use blind rivets or self-drilling screws when installing fire sprinkler systems
