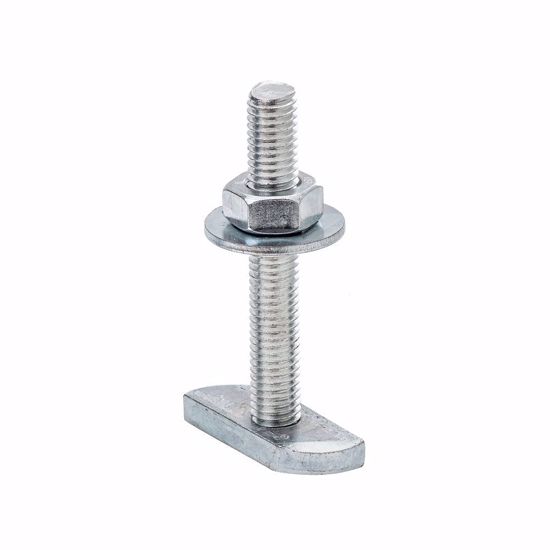

Slide T-bolt assembly 38/40+40/60, vZn, M 8 x 50

The slide T-bolt is mainly used as connecting part between pipe clamp and fixing rail or cantilever arm. Pipe slope can be achieved thanks to the different lengths of the slide T-bolts and different lengths also allow to anchor pipes with different insulation thicknesses. The slide T-bolt is composed from pressed threaded pin together with slide nut, washer for fixing rail and hexagon nut DIN934.

Characteristics:

• Material: class 5.6 steel – galvanized

• Suitable for profiles: 38/40, 40/60

• Bolt: M 8 x 50 mm
