Description:

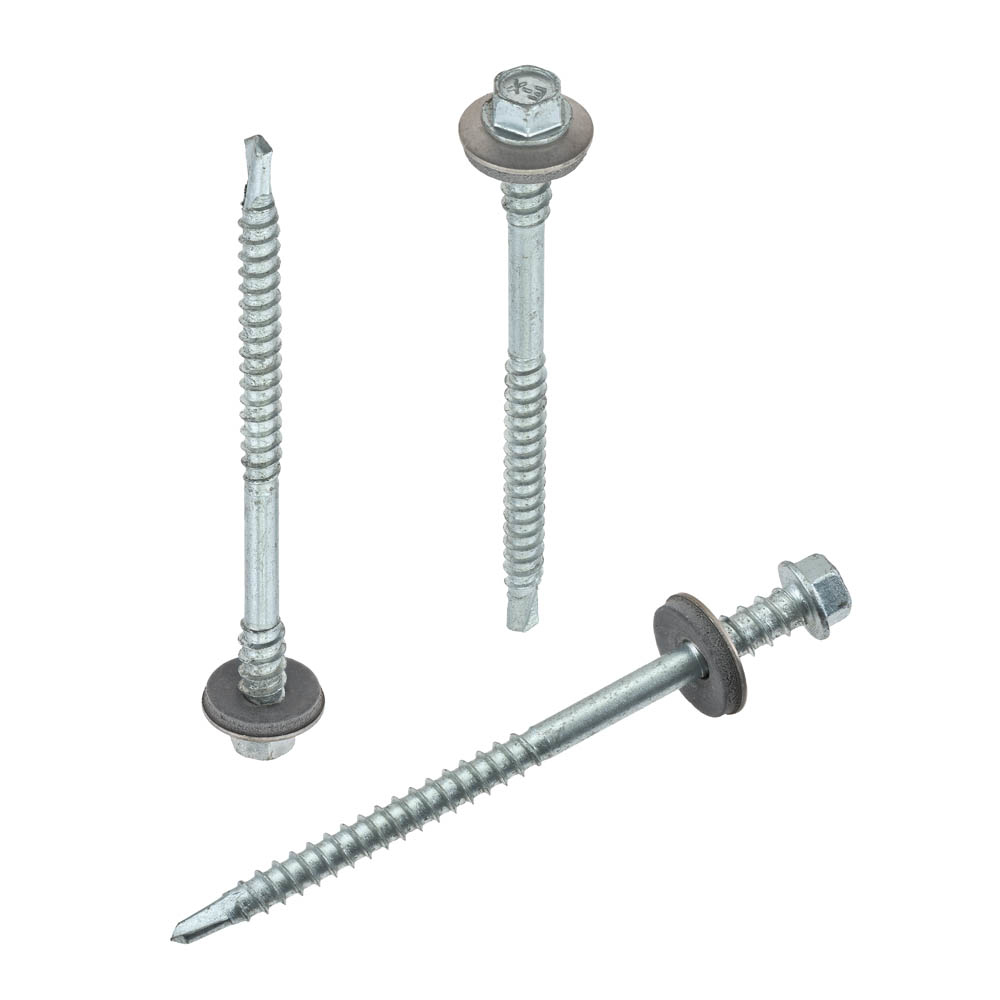

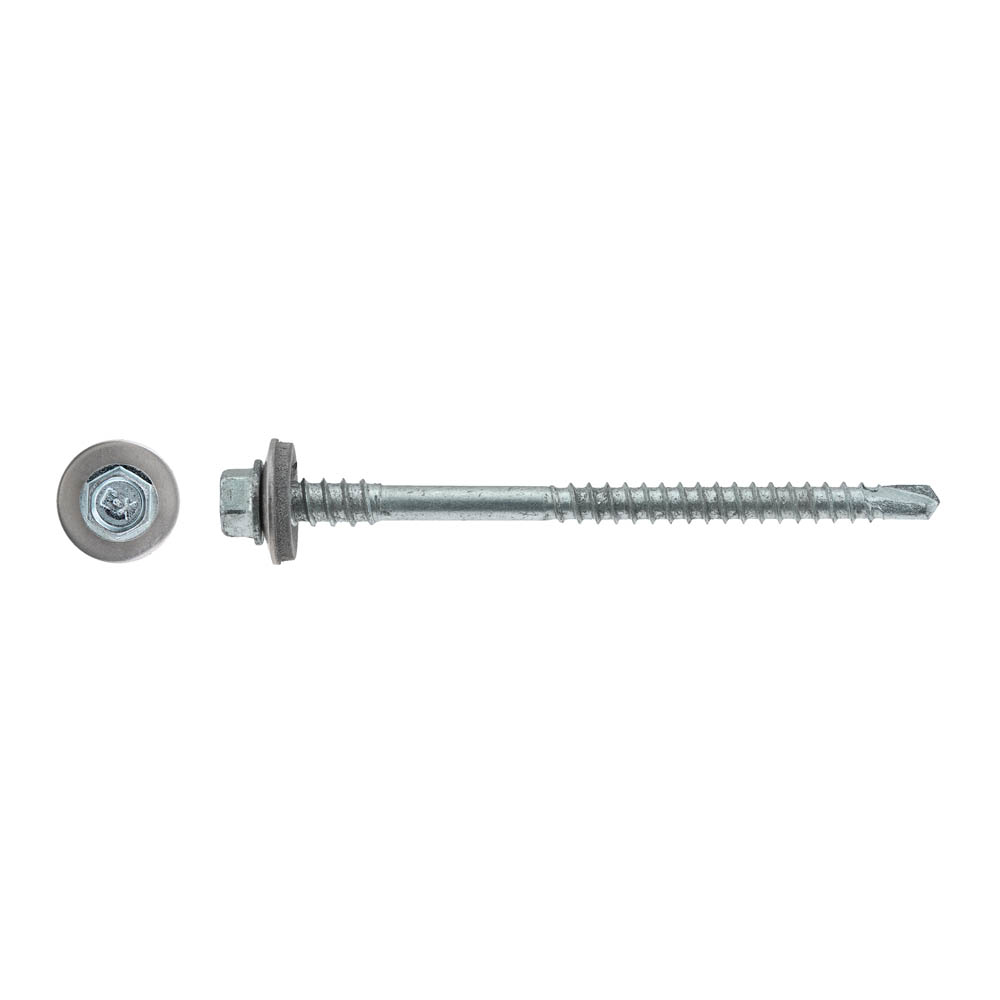

ART 07504 0191 Screw according to DIN 7504K (Panel), for sandwich panels and corrugated sheets. Hexagonal head and washer with neoprene (EPDM) seal and tip with drill bit, for drilling metal. Short drill bit - #DP3, recommended maximum profile thickness - 5 mm Characteristics: • Material: carbon steel • Drive: HEX (SW) • Coating: zinc (vZn)
More information
Self-drilling screw, DIN 7504K Panel, EPDM Ø 19, Ø 5,5 x 75, b=6 mm
Self-drilling screw, DIN 7504K Panel, EPDM Ø 19, Ø 5,5 x 75, b=6 mm
SKU
07504 0191 55 75
07504 0191 55 75
GTIN
0000000140485
0000000140485
Weight
0.01350
0.01350
Unit
pc.
pc.
Products specifications
| Standard | ART 07504 0191 |
| Surface | ZN |
| Material | carbon steel |
| Diameter | Ø 5.5 mm |
| Length | 75 mm |
| Drive type | SW |
| Size | Ø 5,5×75 |
| Packing /pcs./ | 1000 pcs |
