Description:

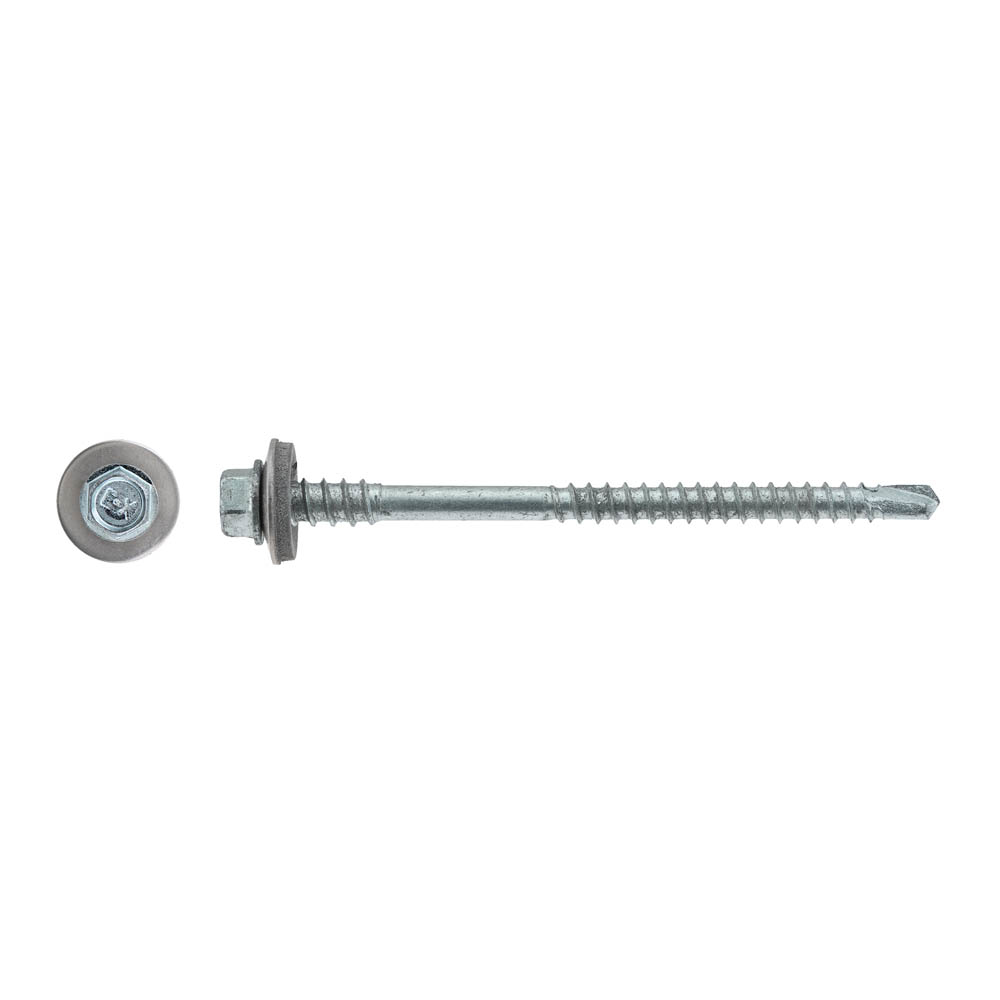

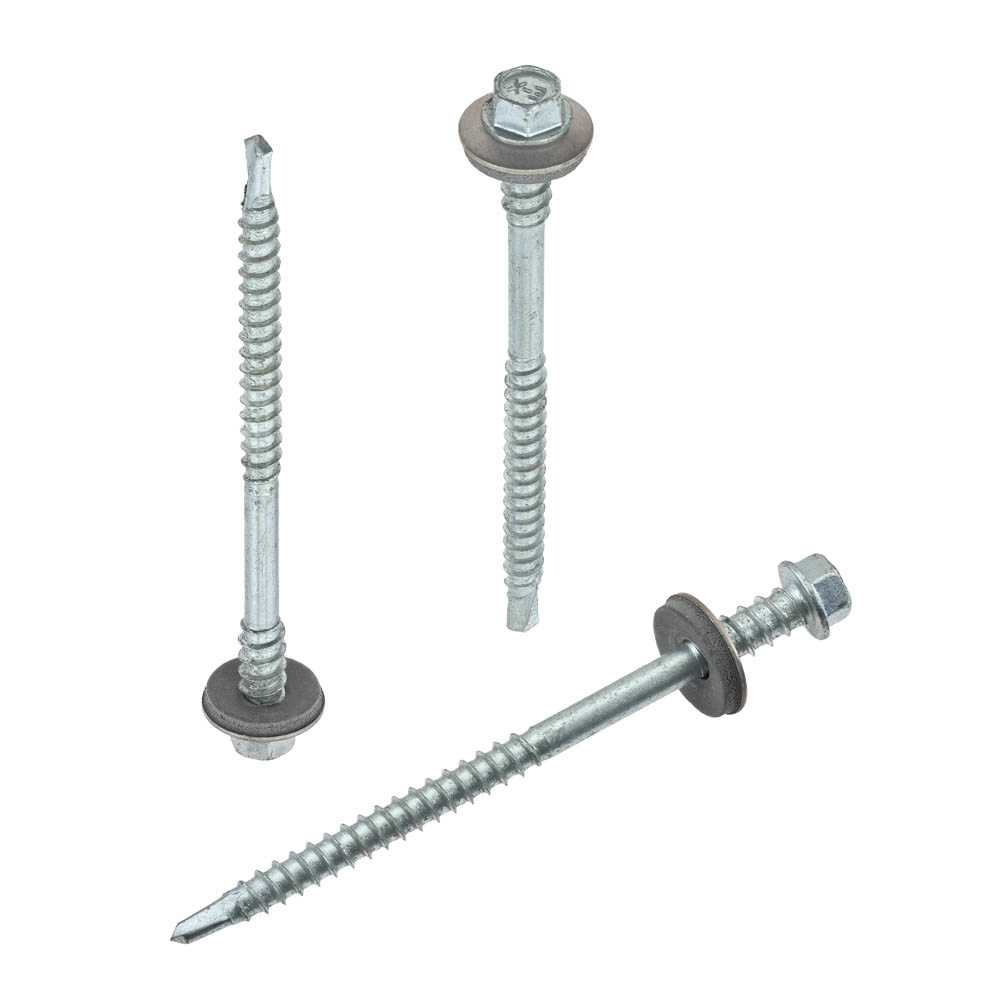

ART 07504 0191 Screw according to DIN 7504K (Panel), for sandwich panels and corrugated sheets. Hexagonal head and washer with neoprene (EPDM) seal and tip with drill bit, for drilling metal. Short drill bit - #DP3, recommended maximum profile thickness - 5 mm Characteristics: • Material: carbon steel • Drive: HEX (SW) • Coating: zinc (vZn)
More information
Self-drilling screw, DIN 7504K Panel, EPDM Ø 19, Ø 5,5 x 190, b=6 mm
Self-drilling screw, DIN 7504K Panel, EPDM Ø 19, Ø 5,5 x 190, b=6 mm
SKU
07504 0191 55 190
07504 0191 55 190
GTIN
0000000411936
0000000411936
Weight
0.03000
0.03000
Unit
pc.
pc.
Products specifications
| Standard | ART 07504 0191 |
| Surface | ZN |
| Material | carbon steel |
| Diameter | Ø 5.5 mm |
| Length | 190 mm |
| Drive type | SW |
| Size | Ø 5,5 x 190 |
| Packing /pcs./ | 500 pcs |
