Description:
ART 07504 0191 Screw according to DIN 7504K (Panel), for sandwich panels and corrugated sheets. Hexagonal head and washer with neoprene (EPDM) seal and tip with drill bit, for drilling metal. Short drill bit - #DP3, recommended maximum profile thickness - 5 mm Characteristics: • Material: carbon steel • Drive: HEX (SW) • Coating: zinc (vZn)
More information

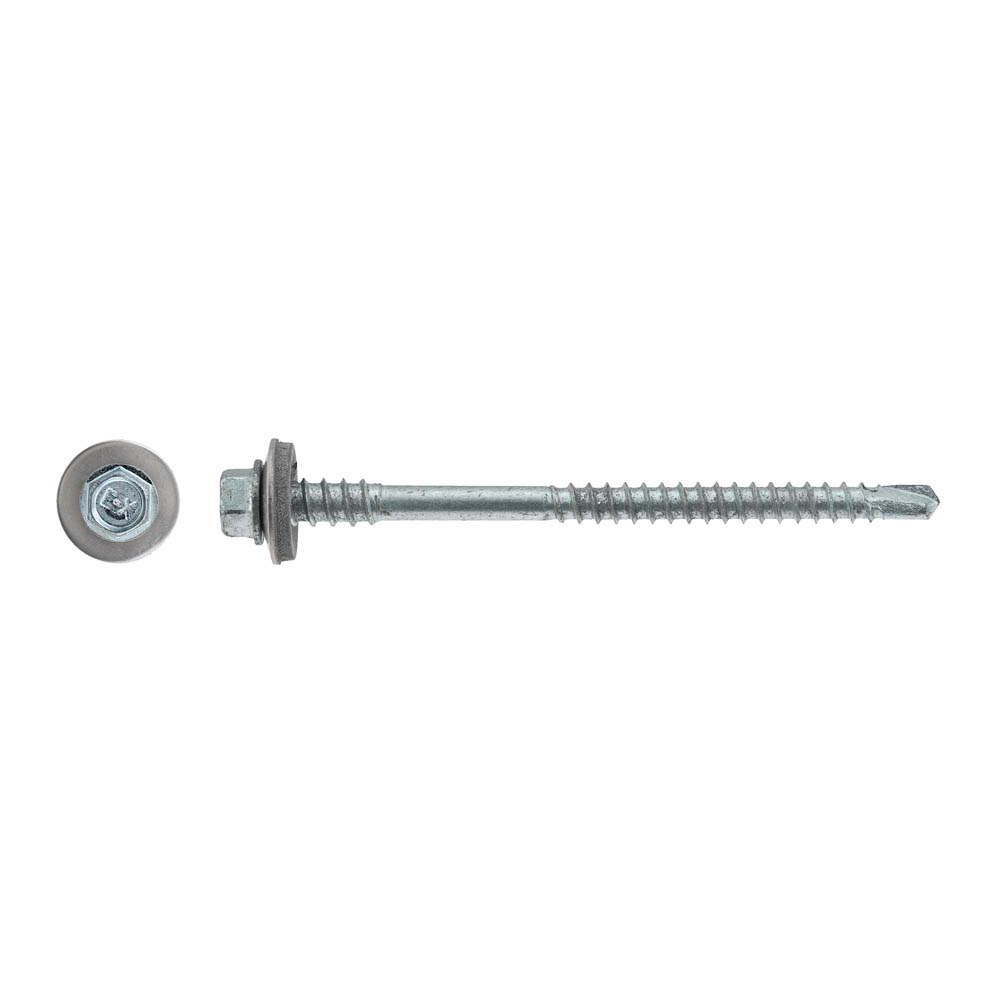

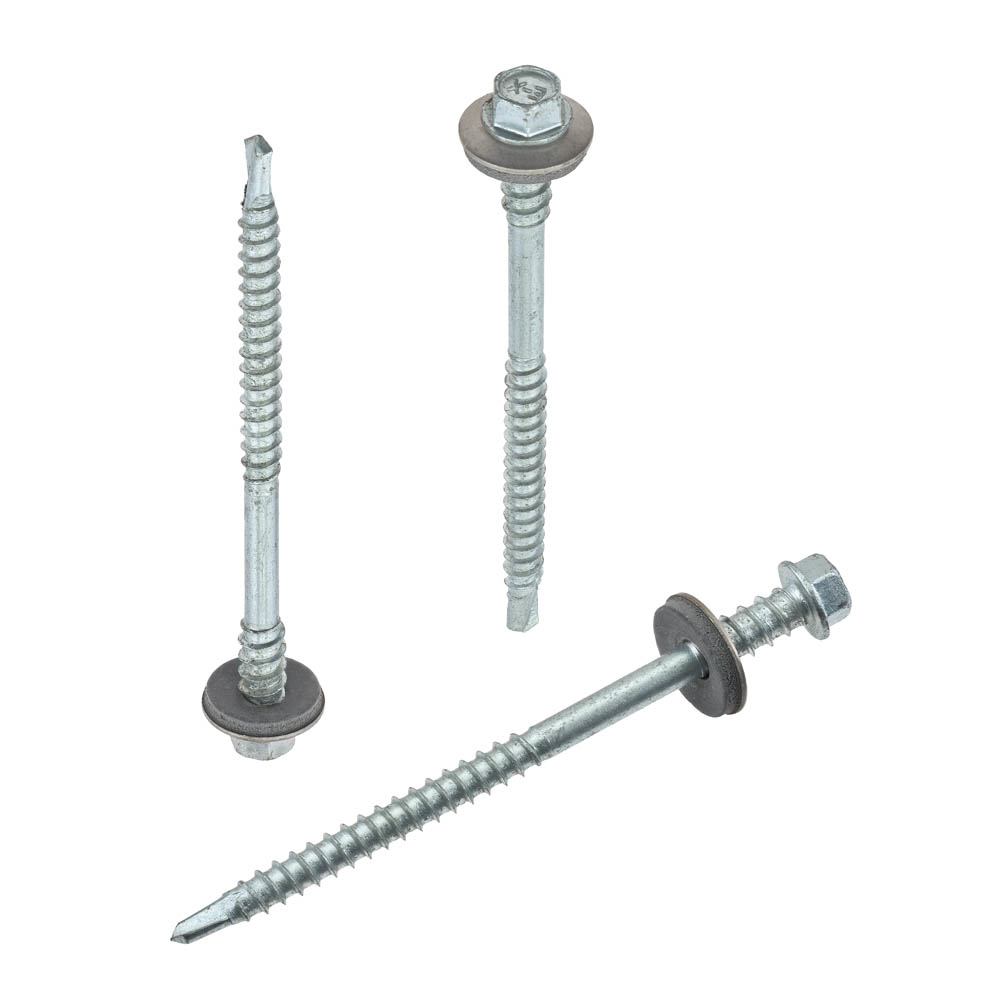

Self-drilling screw, DIN 7504K Panel, EPDM Ø 19, Ø 5,5 x 165, b = 6 mm
Self-drilling screw, DIN 7504K Panel, EPDM Ø 19, Ø 5,5 x 165, b = 6 mm
SKU
07504 0191 55 165
07504 0191 55 165
GTIN
0000000311069
0000000311069
Weight
0.02600
0.02600
Unit
pc.
pc.
Products specifications
| Standard | ART 07504 0191 |
| Surface | ZN |
| Material | carbon steel |
| Diameter | Ø 5.5 mm |
| Length | 165 mm |
| Drive type | SW |
| Size | Ø 5,5 x 165 |
| Packing /pcs./ | 500 pcs |
