Description:

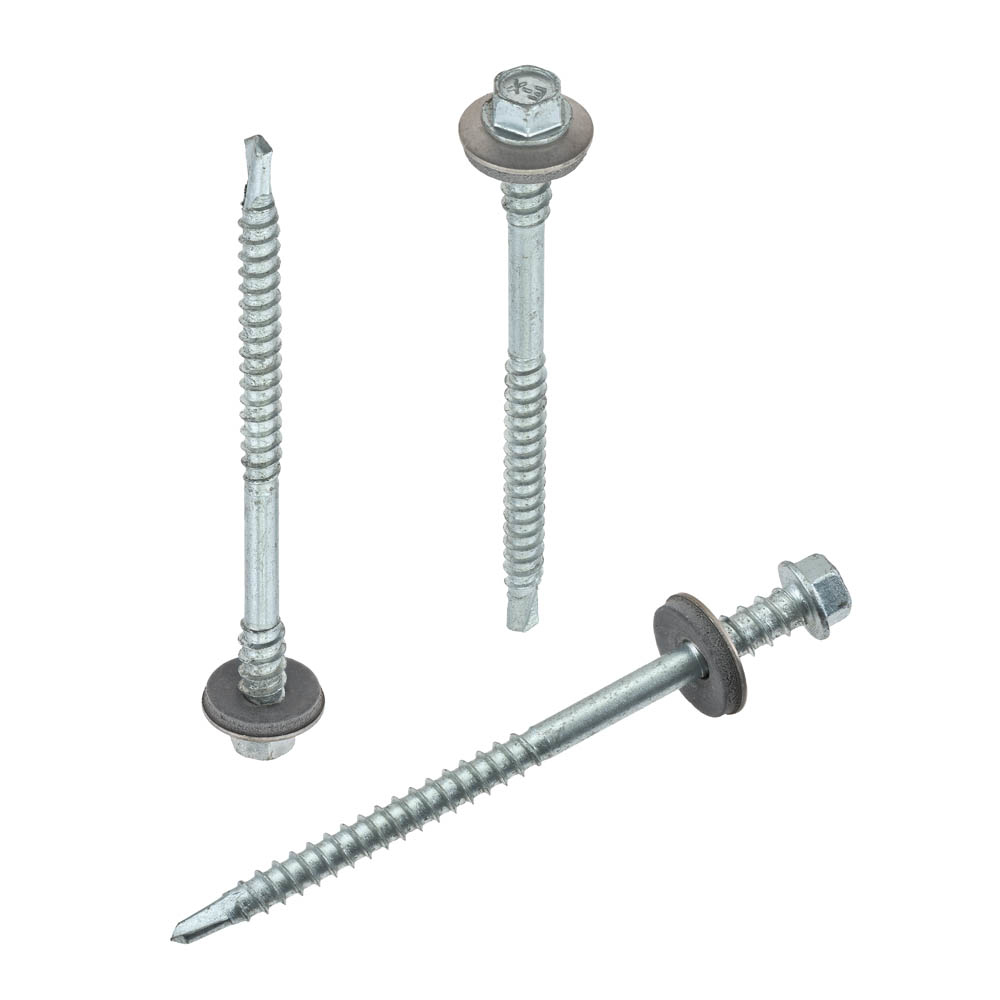

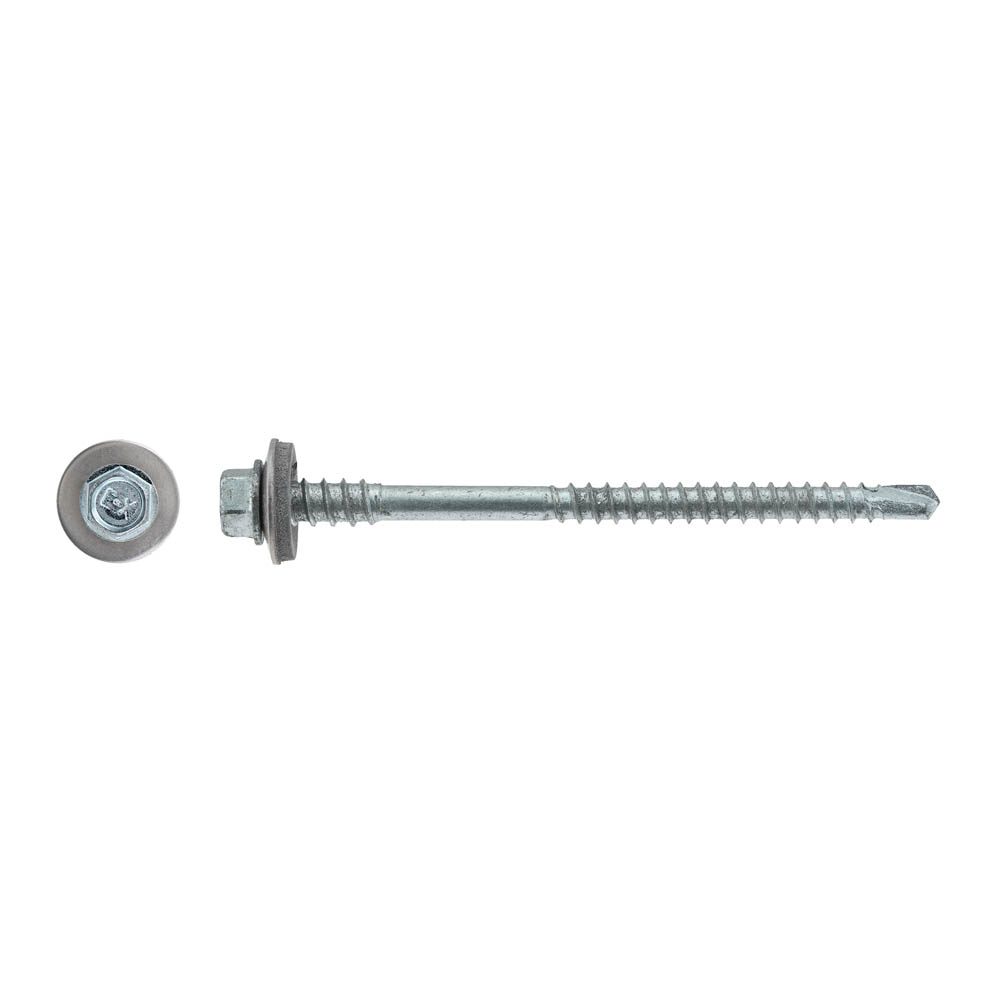

ART 07504 0191 Screw according to DIN 7504K (Panel), for sandwich panels and corrugated sheets. Hexagonal head and washer with neoprene (EPDM) seal and tip with drill bit, for drilling metal. Short drill bit - #DP3, recommended maximum profile thickness - 5 mm Characteristics: • Material: carbon steel • Drive: HEX (SW) • Coating: zinc (vZn)
More information
Self-drilling screw, DIN 7504K Panel, EPDM Ø 19, Ø 5,5 x 105, b=6 mm
Self-drilling screw, DIN 7504K Panel, EPDM Ø 19, Ø 5,5 x 105, b=6 mm
SKU
07504 0191 55 105
07504 0191 55 105
GTIN
0000000187510
0000000187510
Weight
0.01730
0.01730
Unit
pc.
pc.
Products specifications
| Standard | ART 07504 0191 |
| Surface | ZN |
| Material | carbon steel |
| Diameter | Ø 5.5 mm |
| Length | 105 mm |
| Drive type | SW |
| Size | Ø 5,5 x 105 |
| Packing /pcs./ | 800 pcs |
