Description:

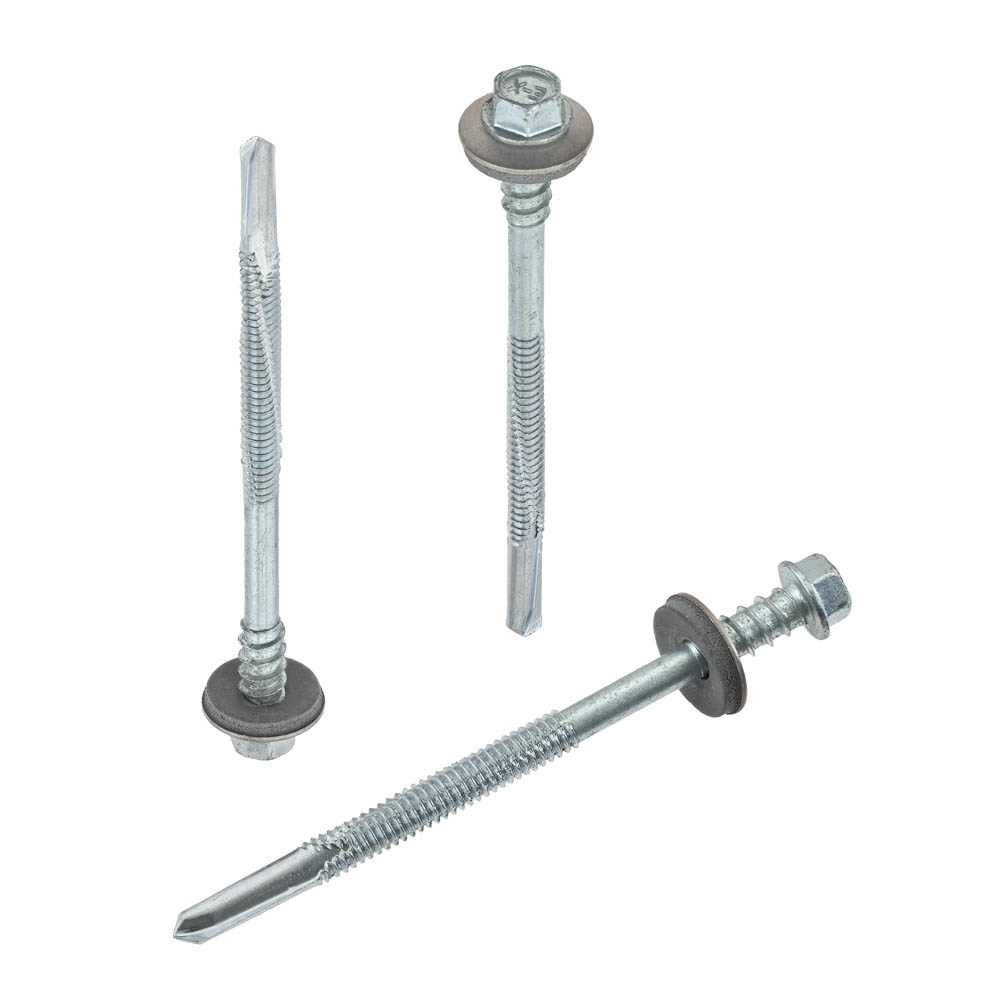

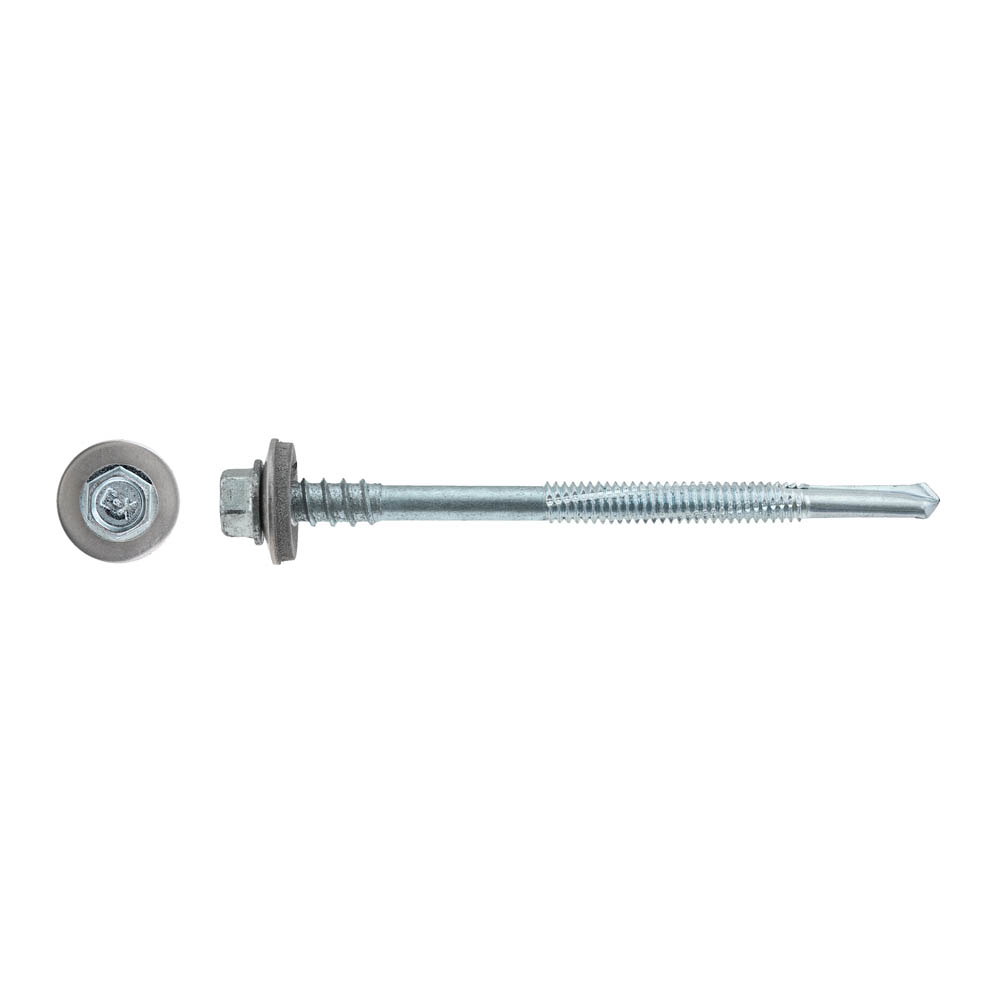

ART 07504 0261 Screw according to DIN 7504K (Panel), for sandwich panels and corrugated sheets. Hexagonal head and washer with neoprene (EPDM) seal and tip with drill bit, for drilling metal. Fine thread. Long drill bit - #DP5, recommended maximum profile thickness - 12 mm Characteristics: • Material: carbon steel • Drive: HEX (SW) • Coating: zinc (vZn)
More information
Self-drilling screw, DIN 7504K HV Panel, EPDM Ø 16, Ø 5,5 x 51, b=12 mm
Self-drilling screw, DIN 7504K HV Panel, EPDM Ø 16, Ø 5,5 x 51, b=12 mm
SKU
07504 0261 55 51
07504 0261 55 51
GTIN
0000000184540
0000000184540
Weight
0.00900
0.00900
Unit
pc.
pc.
Products specifications
| Standard | ART 07504 0261 |
| Surface | ZN |
| Material | carbon steel |
| Diameter | Ø 5.5 mm |
| Length | 51 mm |
| Drive type | SW |
| Size | Ø 5,5 x 51 |
| Packing /pcs./ | 2000 pcs |
