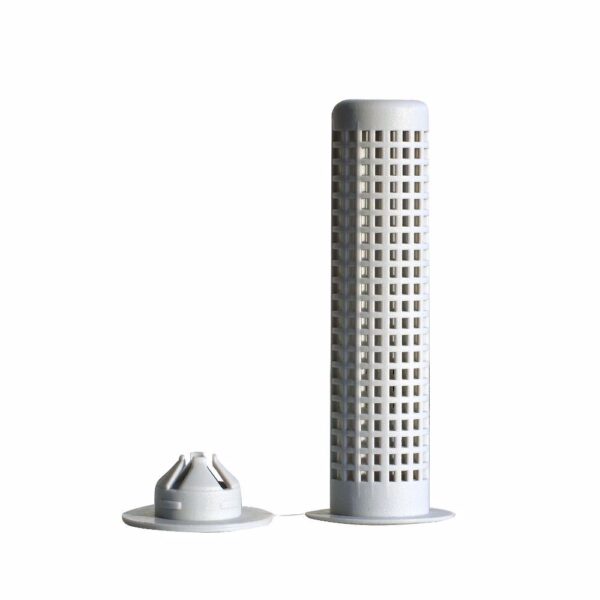

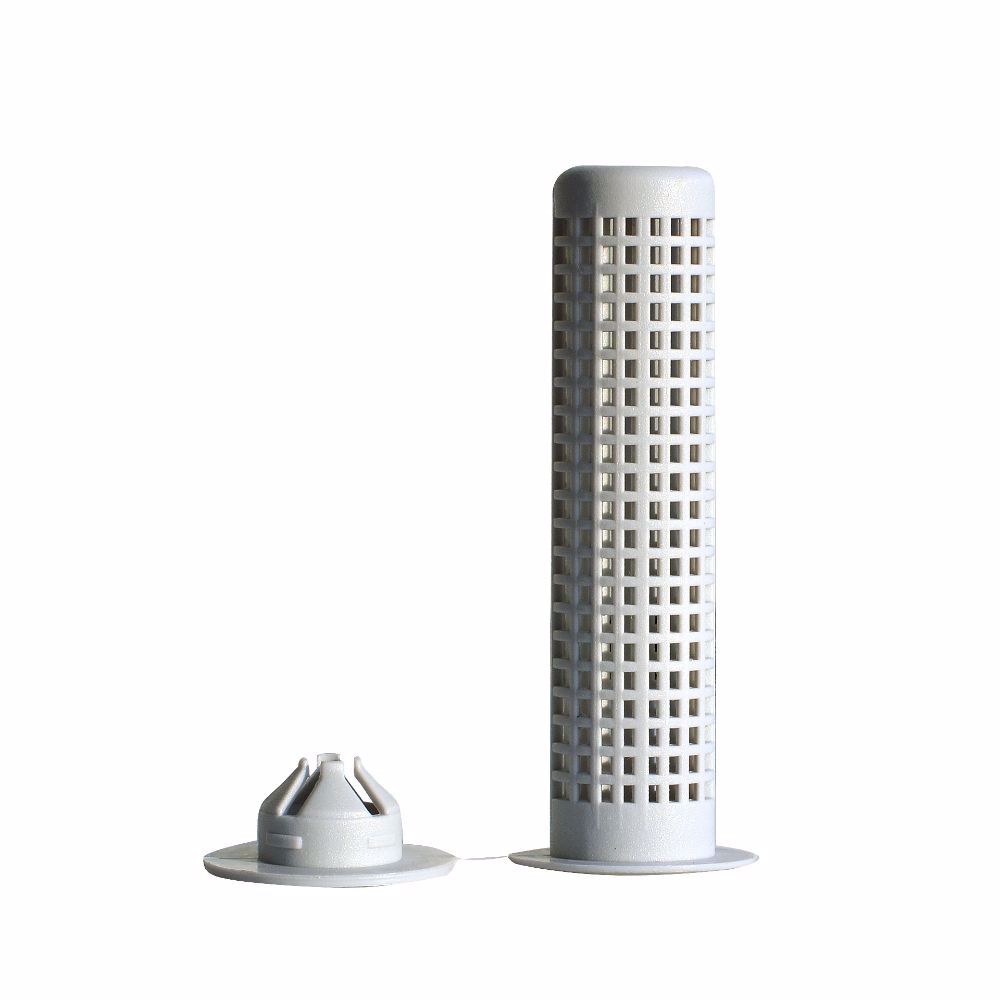

Injections anchor sleeve, PVC, FISCHER FIS H K, Ø 22×130/M 16 – M 18

The optimised grating structure reduces the use of injection mortar. When the threaded rod and internal threaded anchor are installed, the mortar is pressed through the grating structure and creates a form fit with the perforated brick. This directs the load into the building material. Setting takes place in a pre-positioned installation. You can use the injection anchor sleeve to bridge non-load-bearing layers. The approvals of the various injection mortars must be observed.

Characteristics:

• Size: Ø 22×130/m16-m18

• Approved application: Vertically perforated brick, Hollow blocks made from lightweight concrete, Hollow blocks made from concrete, Perforated sand-lime brick, Solid sand-lime brick, Solid brick

• Certificates and declarations applicable to the product: ETA-10/0383, ETA-15/0263, DoP No 0026, DoP No 0126, DoP No 0756-CPD-036
